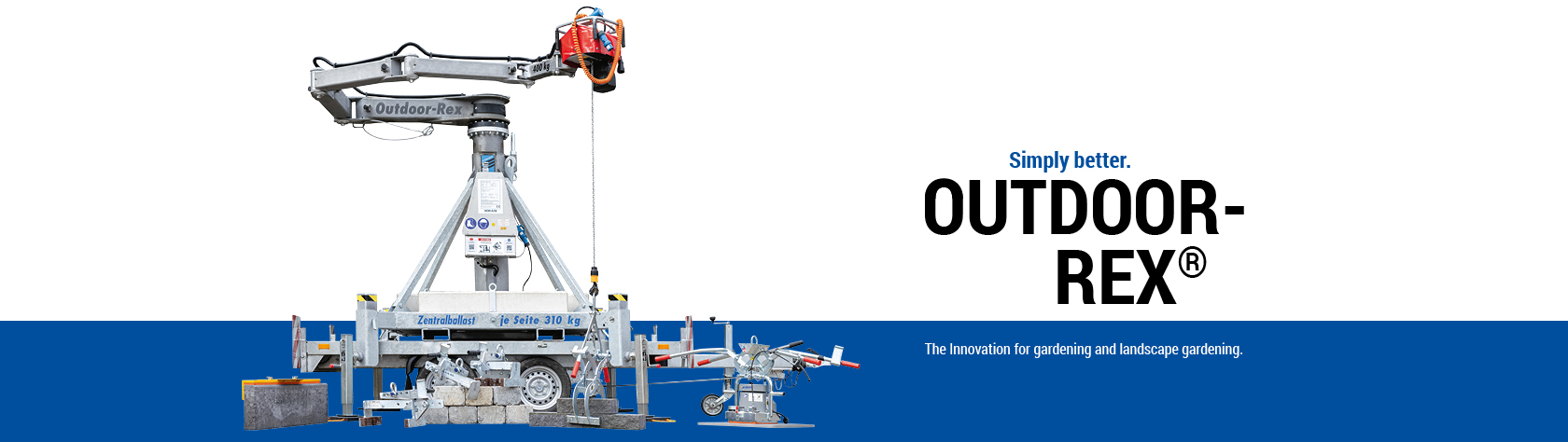

The machine for gardening and landscaping
Working has never been easier
How can the daily challenges in horticulture and landscaping be mastered more efficiently and easily? How can processes be simplified? We asked ourselves these questions when we developed the Outdoor-Rex® and answered them with this innovative positioning device and mini crane. The gardening and landscaping industry is facing a multitude of challenges. Increasing costs and higher demands on biodiversity and environmental protection must be mastered and implemented.
The Outdoor-Rex® offers you the opportunity to work faster and more economically as well as more flexibly and with less impact on the terrain.
Always with the individual needs of employees and companies in focus, we have further developed our innovative STEIN-REX® 2.0 for landscaping with expertise, years of industry knowledge and a great deal of passion. The result: the Outdoor-Rex®. User-friendly. Safe. Economical. Landscaping shapes our cityscapes and landscapes. It‘s time it received the support it deserves.
- Can be used in the tightest of spaces and in front of existing obstacles such as walls or hedges
- 1-person operation: With the appropriate attachments, kerbstones, garden slabs, natural wall stones, patio slabs or steps can be moved and laid easily and with just one person
- Operating radius of 5 m: Large areas can be worked on with only one standing position
- Effortless positioning of weights from 300 – 400 kg
- No dangerous area due to swinging ballast
- Adaptation to all conditions
- Stable even in windy conditions due to small contact surface
- Adjustable hook height
Technical Data Outdoor-Rex®
| Transport dimensions: | Length of the trailer: 4.5 m Width: 2.35 m | Heigth: 2.95 m |
| Load capacity: | 300 kg (400 kg with articulated arm folded in) |
| Hook height: | 4 m adjustable via hydraulic column |
| Total weight: | 3.000 kg (incl. ballast weights) |
| Gesamtgewicht Anhänger: | Tandem trailer with permissible total mass of 3500 kg | Trailer tare weight: approx. 465 kg |
| Outreach: | 5 m / 4.3 m |
Free consultation
The innovative paver for landscaping
How the Outdoor-Rex® makes your work easier.
Move and place heavy loads such as paving stones or concrete blocks with ease. Reach inaccessible terrain with no problems. Work efficiently at different heights and terrace levels. With the Outdoor-Rex®, you have a partner at your side who supports you effectively with lifting and moving paving stones and concrete blocks in gardening and landscaping and takes the burden off your employees.
Your advantage: You save time and manpower whilst increasing productivity and efficiency.
Thanks to its intelligent design, the small crane with telescopic column and multiple articulated boom is ideal when working in confined spaces. The Outdoor-Rex® – your crane for garden and landscaping construction.
Passage and hook height
Work flexibly and terrain-friendly with Outdoor-Rex®

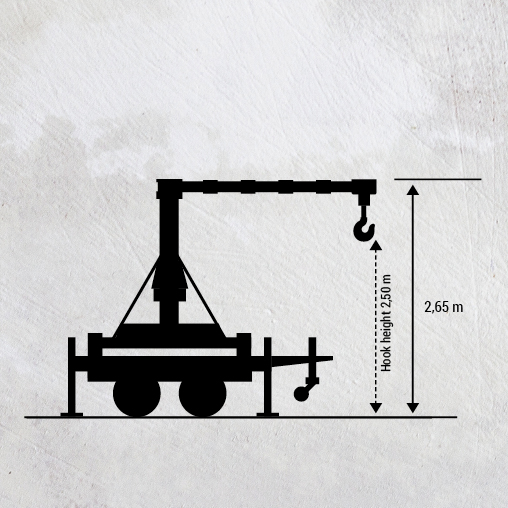

Lower position, telescopic column retracted

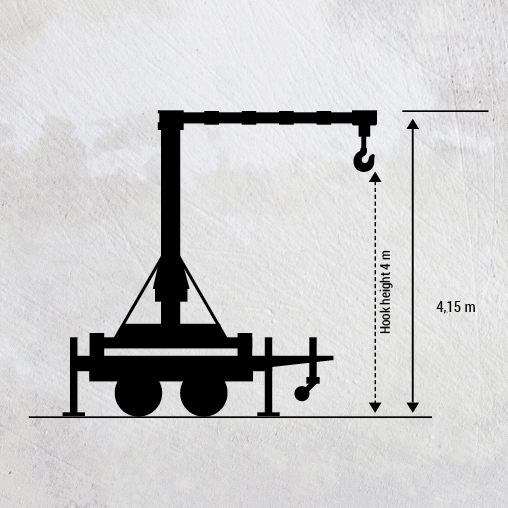

Lower position, telescopic column extended
Simply better.
What makes the Outdoor-Rex® special
Do you want to effectively reduce your employees‘ workload and save manpower? The answer is Outdoor-Rex®. Lifting large planters, setting paving stones and kerbstones as well as garden walls, steps and patio tiles is made considerably easier. Thanks to the flexible control of the Outdoor-Rex®, precise placement and setting of stones on raised terraces or the positioning of heavy sculptures, garden fences or decorations is made possible.
It doesn‘t get any faster: With the Outdoor-Rex® you can work faster and complete various tasks, such as laying paving stones or bricks, much more efficiently.
Due to its compact design and transport method, the Outdoor-Rex® is gentle on the surrounding terrain as it causes less damage than larger construction machines. This is an advantage in sensitive environments such as gardens or landscaped areas. It can also be used on paved areas that have not been cleared.
Not only the telescopic column of the Outdoor-Rex® is hightemperature galvanized, but also the multiple articulated boom, which prevents it from rusting and makes it more durable. The Outdoor-Rex® also has a hot-dip galvanized base frame.
No difficulties with height differences in the terrain: inclines of up to 5% can be effortlessly compensated by the integrated heavy-duty supports.
The Outdoor-Rex® is equipped with a 230 V PLC control system with integrated frequency converter. While the chain hoist is easy to operate thanks to the soft start-up and two lifting speeds, the integrated bubble levels facilitate precise alignment. The innovative hydraulic column can be extended by 1500 mm using the remote control. The radio remote control and radio bracket are used to adapt it to the load handling attachment. The cable control is also available as a replacement control.
Insight into the mounting systems
The right accessory for every application

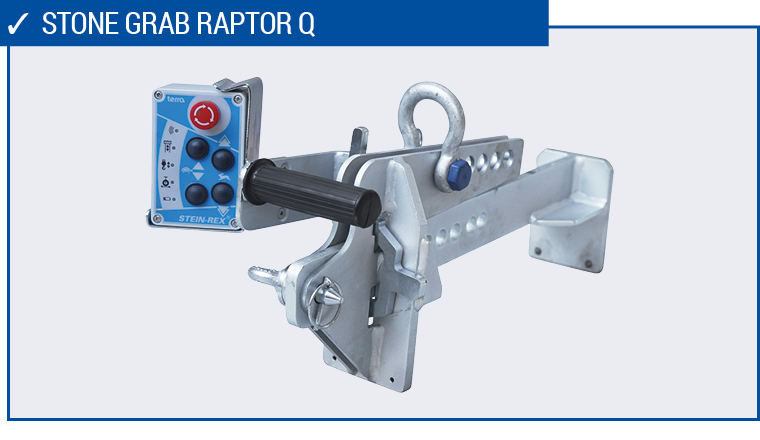

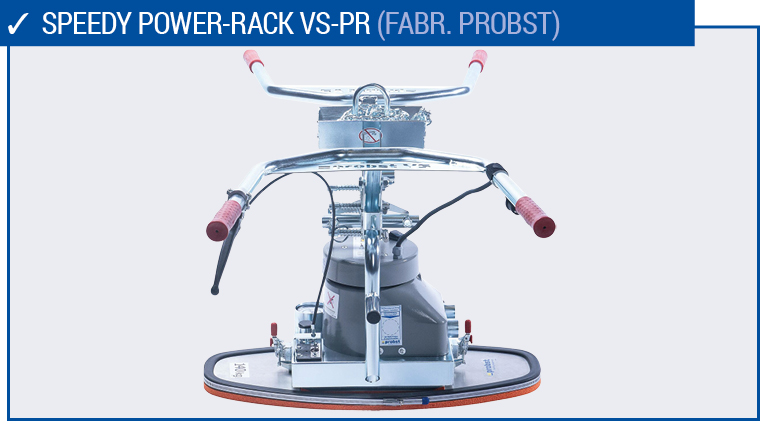

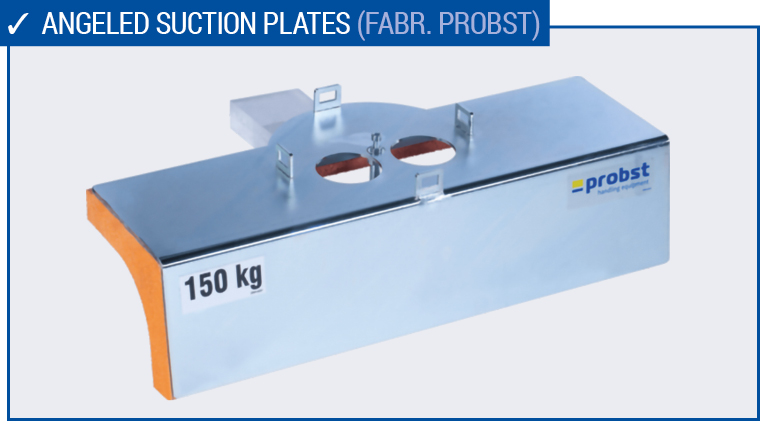

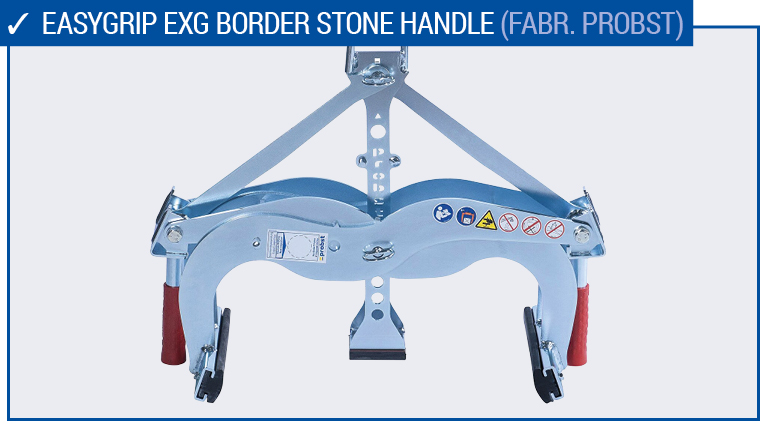

Thanks to the wide range of grabs and pickup systems, kerbstones, garden slabs, natural wall stones, patio slabs or steps can be easily moved and laid. Your advantage: The entire process can be carried out by a single person.
Thanks to our innovative adapter, the Outdoor-Rex® remote control can be easily attached to the corresponding load handling attachment, which is then ready for use with the Outdoor-Rex®. This means you have a wide range of lifting systems at your disposal! We also offer you a spiral cable to provide a 240 V Schuko socket in the area of the crane hook, to which other devices with a wide variety of attachments can be connected.
Easy. Precise. Flexible.
The Outdoor-Rex® can flexibly reach, work and cover long distances around existing obstacles such as trees, bushes or walls. The Outdoor-Rex® can be moved easily thanks to its fixed connection to the trailer. With the Outdoor-Rex® you can position weights of 300 – 400 kg effortlessly on the spot. Absolutely precise: you can position and place even large-format paving stones with pinpoint accuracy.
With the Outdoor-Rex® you can easily work on different levels and terrace steps. The Outdoor-Rex® offers you the opportunity to take full advantage of the multiple articulated boom even on uneven and unpaved surfaces. Differences in gradients of up to 5 % can be compensated quickly and easily.
